Single-sided herbicyde spray boom

The single-sided herbicyde spray boom is intended for aggregation on the tractor's front hitch. Thanks to the long hoses it is easy to connect it to a mounted or trailed sprayer. Thanks to the horizontal adjustment option, it is easy to adjust to the width of the rows in the orchard. Boom wings have hinged joints ensuring safety in contact with the trunk of the tree and protecting the boom and tree from damage. Boom covers protect against spraying of spray liquid on low branches.

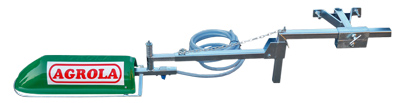

Single-sided herbicyde spray boom TI

Herbicyde spray boom

Single-sided boom Type I allows spraying one strip each about 1400mm wide. Boom wings are equipped with four nozzles of which one extreme asymmetrical facilitating spraying at the trunks of trees.

Main features

  • Type: TI
  • Number of nozzles: 3
  • Nozzle type: two standard multirange flat spray, one off center flat spray
  • The minimum distance from the sprayed surface: 0,3m
  • Spraying width: 1,4m
  • Boom width: 1,53m - 1,93m
  • Vertical adjustment range: 0,35m
  • Weight: 17,1kg

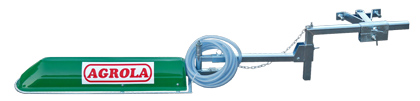

Single-sided herbicyde spray boom TII

Herbicyde spray boom

Single-sided boom Type II allows spraying one strip each about 1700mm wide. Boom wings are equipped with four nozzles of which one extreme asymmetrical facilitating spraying at the trunks of trees.

Main features

  • Type: TII
  • Number of nozzles: 4
  • Nozzle type: three standard multirange flat spray, one off center flat spray
  • The minimum distance from the sprayed surface: 0,3m
  • Spraying width: 1,7m
  • Boom width: 1,53m - 2,23m
  • Vertical adjustment range: 0,35m
  • Weight: 18,7kg
