Agrola Vertical

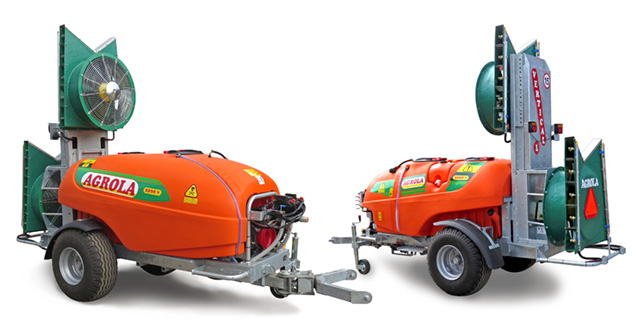

Agrola Vertical sprayers are equipped with a set of two deflectors, which are installed one above the other. Blower Agrola Vertical takes advantage of a reverse air intake, which directs spraying liquid at an appropriate angle to the row, which makes spraying more effective and reduces the amount of plant protection products. It is intended for performing treatments in orchards.

Agrola "Vertical" sprayer was created in cooperation with Research Institute of Horticulture in Skierniewice(InHort).
Two fans are mechanically driven from the tractor's PTO by two-speed multiplier gearbox and power transmission unit.
The upper fan is normally installed in one specific position, but it is possible to order machines in another selected specification by changing air flow capacity of individual fan or the position of the upper fan.

Blower - two deflectors with reversed air intake are installed one above the other. Both are equipped with an axial fan, ten double nozzle holders with anti-drip valve and two sets of spray tips. Deflectors are mechanically driven by a two-speed multiplier gearbox (2+N) and power transmission unit.

Pump - diaphragm, high pressure manufactured by a renowned Italian company Annovi & Reverberi, ensures receiving a full range of pressures and capacity of liquids needed to perform plant protection treatments and proper mixing of liquids in the tank.
BHA130 max flow 127 lpm and max pressure 50 bar [5 MPa] (max operating pressure 20 bar [2 MPa]) - Agrola 2000v /..., Agrola 1500v/ ..,
BHA150 max flow 142 lpm and max pressure 50 bar [5 MPa] (max operating pressure 20 bar [2 MPa]) - Agrola 2000v /..., Agrola 1500v/ .., (optional)



Control unit - according to the clients' needs, we offer three equipment options:
Electric control unit Arag (2 sections valves, main valve, proportional control valve) with a control box.
Computer Bravo 180s Arag (electric control unit with 2 sections valves, electromagnetic flow-meter and inductive speed sensor which is installed on the sprayer wheel).
Computer Bravo 300s Arag (electric control unit with 4 sections valves, electromagnetic flow-meter and inductive speed sensor which is installed on the sprayer wheel).

Tank - made of high quality polyethylene, contains three parts: a tank of clean water for rinsing the circuit;
a tank of clean water for washing hands and a main tank with a nominal capacity of:
- 1500 liters - Agrola 1500v/...,
- 2000 liters - Agrola 2000v/...,

Frame and drawbar - specially designed from high quality structural steel that is protected against corrosion by hot dip galvanizing. It forms solid and durable machine base.
Three types of drawbars::
- standard drawbar,
- steering drawbar for three-point hitch (optional equipment),
- clevis drawbar (optional equipment).

Axles and wheels - adjustable axle and proper selection of wheels for the terrain have a big impact on the stability of the machine, that's why we offer several types of tires:
- wheels 340 / 55-16
- wheels 380 / 55-17 (equipment option);
- wheels 400 / 60-15,5 (equipment option);

Lighting system (standard equipment) - lighting that gives visible light from a distance is a necessary addition when the machine drives  on roads. Lighting system installation - rear, composite LED lamps (position, directional and stop lights) + warning triangle for agricultural machinery.
Lighting of nozzles with LED (optional equipment).

PTO Drive shaft (optional equipment)
- in the case of the sprayer equipped with a standard drawbar: (torque 400Nm, length 1100mm);
- in the case of the sprayer equipped with a steering drawbar for three-point hitch, a clevis drawbar as well as a standard drawbar: PTO Wide angel drive shaft (torque 400Nm, length 1010mm);
* - to drive the sprayer it is necessary to use a PTO drive shaft that has the CE mark and safety shield kit.



Parameters
Spraying level: vertically 5,5m, horizontally 5m
Air flow capacity (max) 60 000 m3/h.
Required power: Agrola 1500/...--40-65HP | Agrola 2000/...-40-65HP
Max RPM 540
Max allowed operating pressure 20bar [2MPa]
Max allowed travelling velocity 15km/h

*- power demand depends on operating parameters; efficiency of the fan and working pressure. In a mountainous terrain or wetlands, it may be necessary to use tractors with more power.
*- the spraying level depends on operating parameters, weather conditions and "foliage of trees".

Overall dimensions
Agrola 1500v/... - Height -2,95m (optional 3,20m) | Width -1,48m | Length –4,25m | Unladen weight - 930kg| Max authorised weight - 3000kg;
Agrola 2000v/... - Height -2,95m (optional 3,20m) | Width -1,54m | Length –4,72n-4,82m | Unladen weight - 930kg| Max authorised weight - 3000kg;
*- some of the given dimensions and parameters may differ from the actual ones due to the type of equipment used, e.g. control unit type, etc.

- some of the components described or shown in the pictures are optional equipment offered at an additional cost.

* - the manufacturer reserves the right to introduce changes related to the continuous improvement of the structure and to remove individual models from production.
