Blowers
|
|

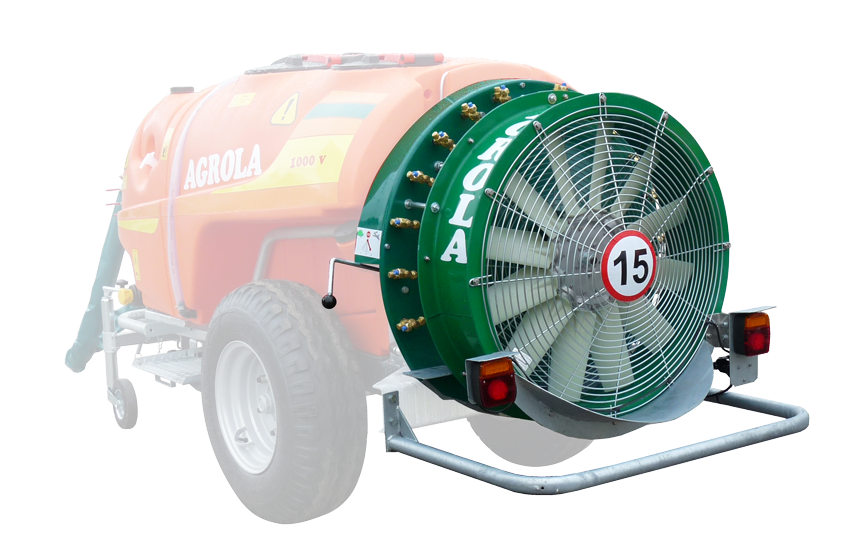

Art. 35 n.w. – a round blower with conventional air intake, equipped with two-speed multiplier gearbox (2+N) and fan with a diameter of 800mm. Intended mainly for performing treatments in orchards. It is characterized by high air efficiency, Air flow capacity (max) 44,000 m3 / h |
|
|

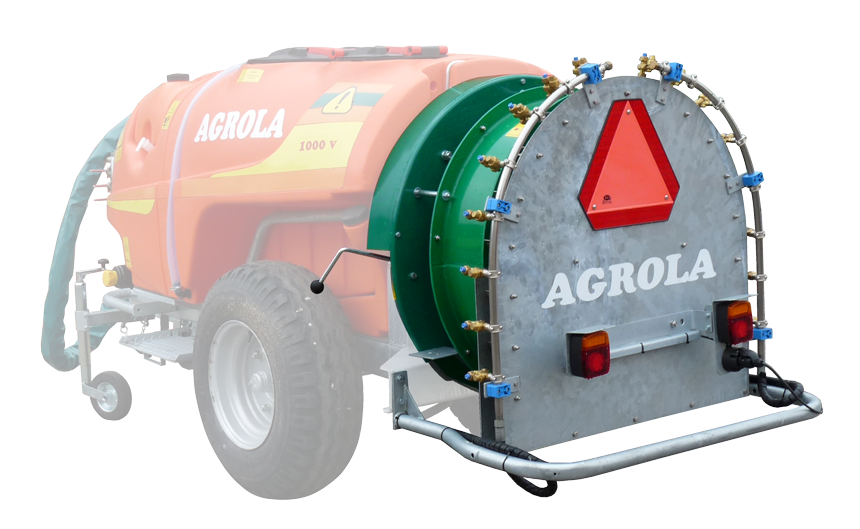

Art. 36 o.c. – przystawka wentylatorowa tzw. „okrągła o odwróconym ciągu powietrza”, wyposażona w dwubiegową przekładnie mechaniczną i wirnik 800mm. Przeznaczona głównie do opryskiwaczy wykorzystywanych w sadach tradycyjnych. Charakteryzuje się dużą wydajnością powietrza, dzięki czemu umożliwia oprysk wysoko prowadzonych drzew. Maksymalna wydajność powietrza 42 000 m3/h przy 540 obr/min |
|
|

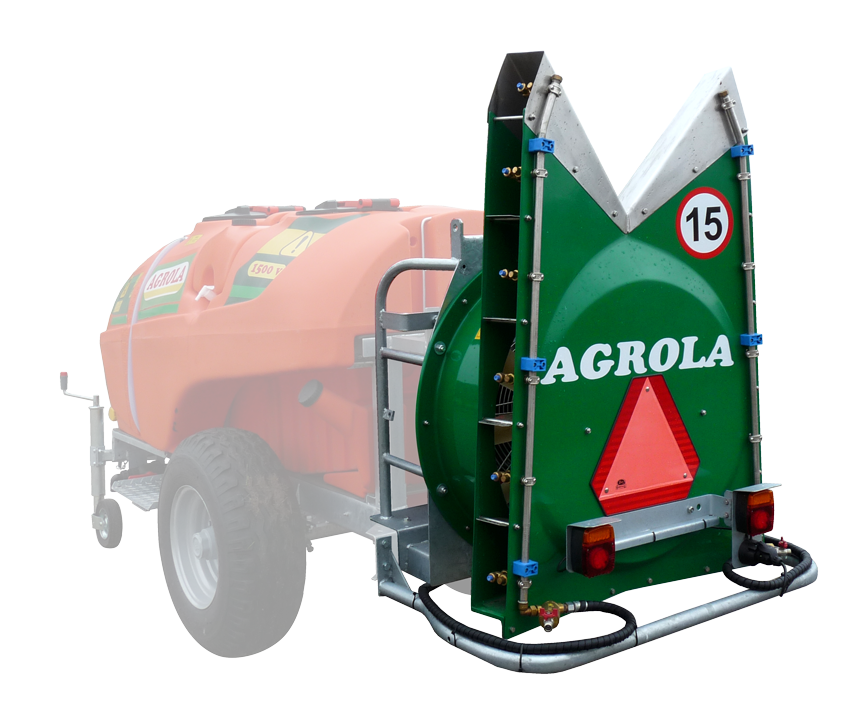

K6 – a deflector blower with reversed air intake, equipped with two-speed multiplier gearbox (2+N) and fan with a diameter of 800mm. Intended mainly for performing treatments in dwarf orchards, vineyards and berry bushes. Due to the special design of the deflector directing the air stream, it fully utilizes the advantages of reversed air intake ensuring better penetration and coverage of the sprayed surface. Air flow capacity (max) 30,000 m3 / h |
|
|

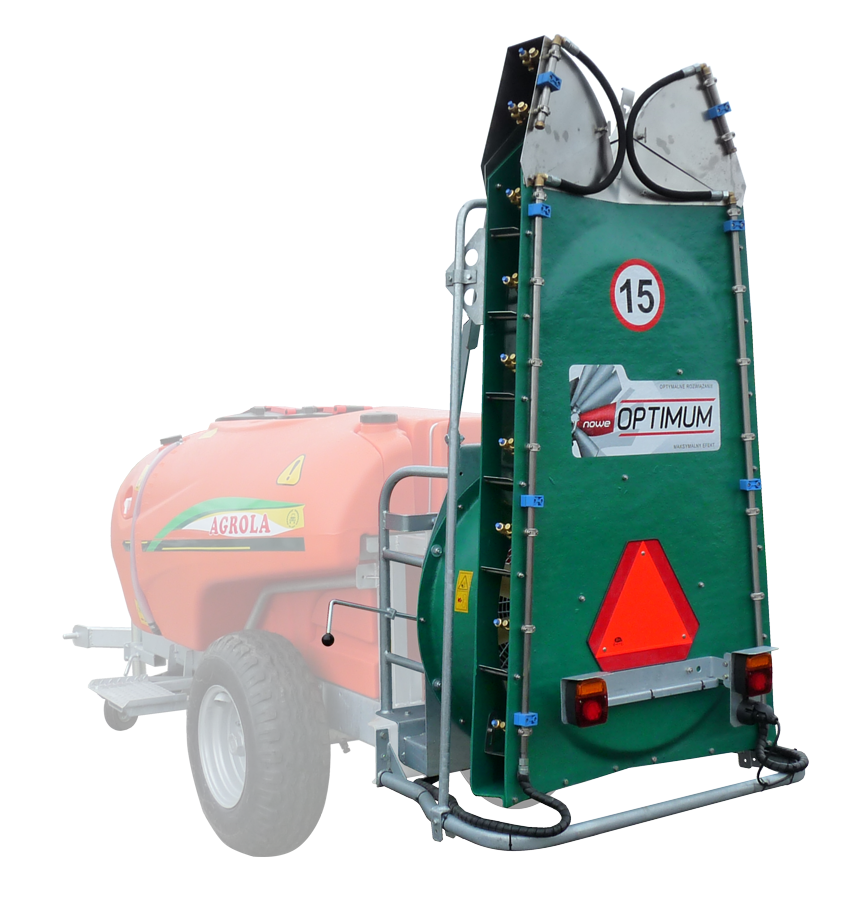

Optimum – a deflector blower with reversed air intake, equipped with two-speed multiplier gearbox (2+N) and fan with a diameter of 800mm. Thanks to the optimal size of the deflectors and an innovative mechanism directing the air stream, it is one of the most versatile blower for performing treatments in various types of orchards. Due to the special design of the deflector directing the air stream, it fully utilizes the advantages of reversed air intake ensuring better penetration and coverage of the sprayed surface. Air flow capacity (max) 42,000 m3 / h |
|
|

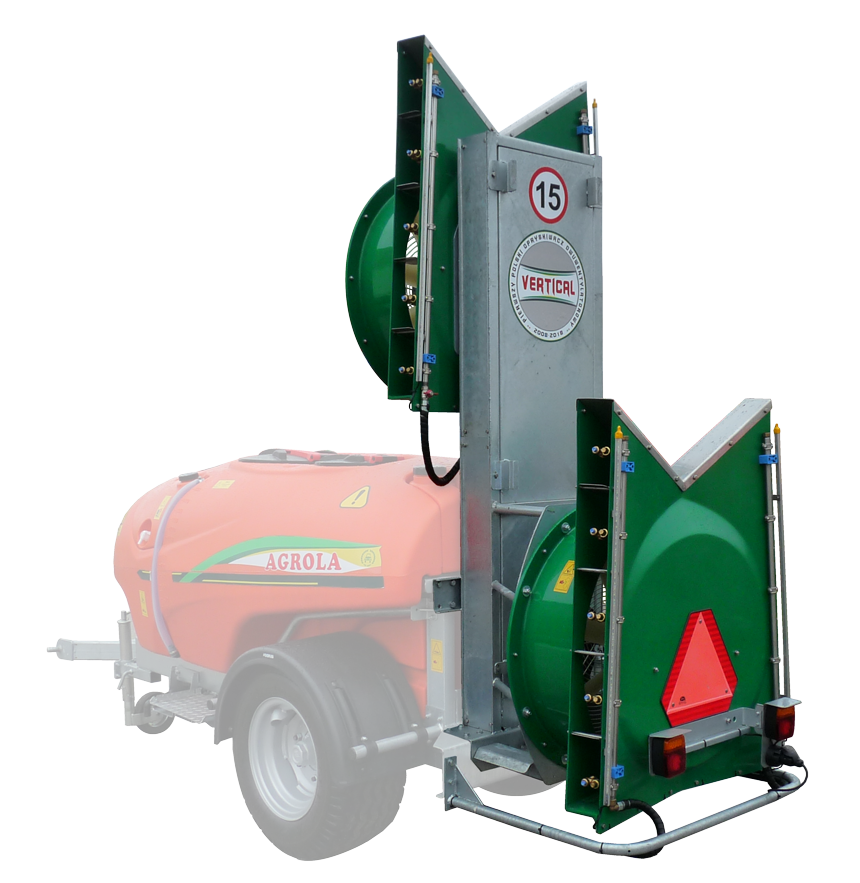

Vertical – two deflector blowers with reversed air intake installed one above the other, equipped with two-speed multiplier gearbox (2+N) with power transmission unit and fans with a diameter of 800mm. Thanks to the innovative design, it fully utilizes the capabilities of two deflector blowers with reversed air intake and is perfect for performing treatments in orchards with narrow rows and tall trees.. Air flow capacity (max) 60,000 m3 / h |
|
|
Power – deflector blower with both sides air intake, equipped with two-speed multiplier gearbox (2+N) with inverter and two separated counter rotating fans with a diameter of 800mm. Thanks to the high air flow capacity, it is perfect for performing treatments in orchards with wide rows. Air flow capacity (max) 70,000 m3 / h |
|
|

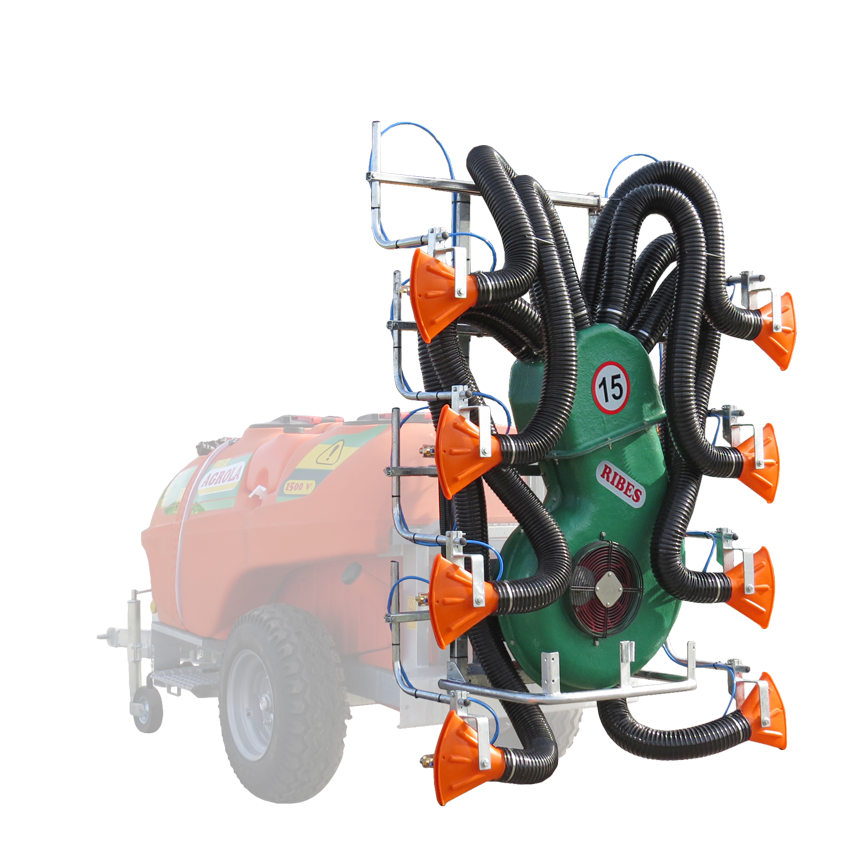

Ribes A8 – a blower with directed air-jet system, equipped with two-speed multiplier gearbox (2+N), a centrifugal impeller with a diameter of 800mm and eight outlets (four per side). Thanks to the large adjustment possibilities and appropriately selected operating parameters, it is perfect for performing treatments on berry bushes and vineyards. Air flow capacity (max) 11,000 m3 / h |
|
|

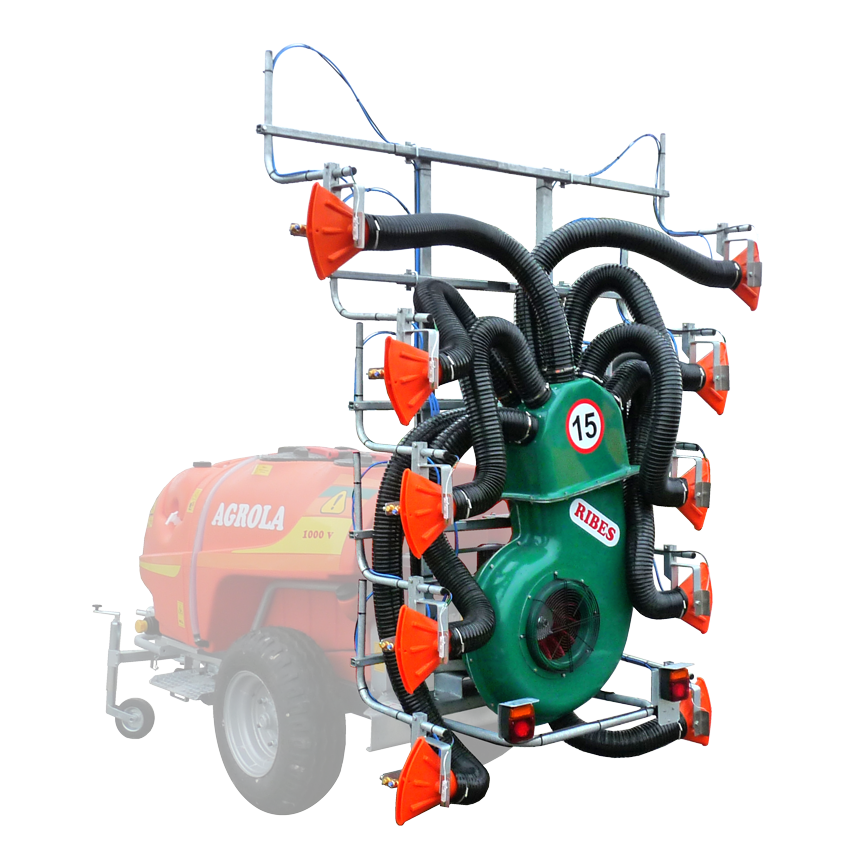

Ribes A10 – a blower with directed air-jet system, equipped with two-speed multiplier gearbox (2+N), a centrifugal impeller with a diameter of 800mm and ten outlets (five per side). Thanks to the large adjustment possibilities and appropriately selected operating parameters, it is perfect for performing treatments on berry bushes and vineyards. Air flow capacity (max) 13,000 m3 / h |
The manufacturer reserves the right to introduce changes related to the continuous improvement of the structure and to remove individual models from production.
Some of the components described or shown in the pictures are optional equipment offered at an additional cost.
In addition to our blowers, we also offer blowers from Nobili and Fieni.
